Backyard play areas cause more emergency room visits than any other residential structure. The Consumer Product Safety Commission tracks roughly 200,000 playground-related injuries per year in the United States, and the majority happen at home. The reasons are predictable: inadequate surfacing under equipment, equipment sized for the wrong age group, fall zones that are too small, and hardware that loosens over time without anyone noticing.
A well-designed play area eliminates most of these risks while still being fun. The difference between a safe setup and a dangerous one is not budget. It is planning. The same ten-foot swing set is either a hazard or a highlight depending on what is underneath it, how far it sits from the fence, and whether the child using it is the right age for the equipment.
This guide covers the dimensional requirements, surfacing standards, and zoning approach I use when designing play areas. Every measurement here comes from safety guidelines and from building (and rebuilding) play structures for my own kids and neighbors.
Sizing the Space: How Much Room You Really Need
The most common mistake is underestimating the footprint. A play set that looks compact in the catalog needs significantly more space around it than most people allocate.
Minimum Area by Equipment Type
A basic swing set with two swings needs a footprint of roughly 6 by 14 feet for the structure itself, but the usable safety zone extends 6 feet beyond the posts on every side. That means the minimum clear area is about 18 by 26 feet, or roughly 470 square feet. The clearance in front of and behind the swings is the critical dimension, because a child swinging forward reaches the apex of the arc about 10 feet from the center post.
A slide structure with a 5-foot deck height needs a clear zone of at least 12 by 16 feet. The exit of the slide requires 6 feet of clear space beyond the end, and the climb-up side needs room for kids to queue without crowding the ladder.
A climbing dome (the kind with geodesic bars) needs a circular clear zone with a radius of at least 4 feet beyond the dome edge. For a 6-foot diameter dome, that means a 14-foot diameter circle of clear space.
Total Yard Allocation
For a play area serving two children under age 8, budget a minimum of 500 square feet for a basic setup (swings plus a small climber). For a more complete area with multiple structures, a sand box, and open running space, plan on 800 to 1,200 square feet. This is not just for safety. Children use play spaces more when there is room to run between structures. Cramped areas lead to collisions and boredom.
Leave a perimeter buffer of at least 6 feet between the play zone boundary and any fence, wall, or hard surface. This buffer absorbs the inevitable moments when a child runs past a structure and keeps them from slamming into something rigid.
Vertical Clearance
Overhead clearance is easy to forget. No play structure should sit under a clothesline, a tree branch lower than 7 feet, or a power line. The clearance above the highest play deck should be at least 6 feet of open air. If you have a tree with a branch at 8 feet that the kids will inevitably try to grab from the top of a climber, either trim the branch or move the structure.
Safety Surfacing: Materials and Fall Heights
The surface under and around play equipment is the single most important safety decision you will make. Falls to the surface account for the majority of playground injuries, and the surface material determines whether a 5-foot fall results in a bruise or a broken arm.
Critical Fall Height Ratings
Every safety surface has a critical fall height (CFH) rating, which is the maximum height from which a child could fall onto that surface without a life-threatening head injury. The ratings assume proper depth of material and proper maintenance.
| Surface Material | Depth Needed | Critical Fall Height | Initial Cost | Maintenance |
|---|---|---|---|---|
| Wood Mulch (Engineered) | 9 inches | 10 feet | Low | High (top up yearly) |
| Wood Chips (Play Grade) | 9 inches | 7 feet | Low | High |
| Shredded Rubber Mulch | 6 inches | 12 feet | High | Low |
| Poured Rubber | 3-4 inches | 10 feet | Very High | Very Low |
| Rubber Tiles | 2.5-4 inches | 8 feet | High | Low |
| Pea Gravel | 9 inches | 5 feet | Low | Medium |
| Sand | 12 inches | 5 feet | Low | High |
| Grass / Dirt | N/A | 0 feet | Low | N/A |
What the Ratings Mean in Practice
If your highest play deck is 5 feet, any surface rated for 5 feet or higher works. If the deck is 8 feet (common on larger sets for older kids), you need a surface rated for at least 8 feet. Grass and bare dirt have a CFH of zero, which is a polite way of saying a fall from any height onto them can cause serious injury.
Engineered wood fiber (EWF) is the standard for public playgrounds and the best value for home use. It is not the same as landscaping mulch. EWF is made from softwood, ground to specific fiber lengths, and tested for fall attenuation. It compacts over time, which is why 9 inches initial depth settles to about 6 inches. You need to top it up annually. Cost runs about 4 to 6 dollars per cubic foot, and a typical home play area needs 4 to 6 cubic yards.
Shredded rubber mulch has the highest CFH and does not decompose, so it does not need topping up. The downside is cost (roughly double wood mulch) and the fact that it gets hot in direct sun. On a 90-degree day, the surface temperature of black rubber mulch can exceed 140 degrees. Choose colored rubber (brown or green) to reduce heat absorption, and plan for shade over the area.
Poured rubber and rubber tiles are the premium options. They look clean, drain well, and need almost no maintenance. The cost is the barrier, running 12 to 20 dollars per square foot installed. For a 500-square-foot play area, that is 6,000 to 10,000 dollars in surfacing alone. Most home installations use these only under the highest-risk equipment (under swings and at the base of slides).
The Maintenance Reality
Loose-fill surfaces (mulch, rubber mulch, sand, gravel) all have the same problem: they migrate. Kids kick the material out of the high-impact zones (under swings, at slide exits), and the protective depth drops below safe levels. You need to rake the material back into place weekly during heavy use season. This is not optional. A swing set with 3 inches of mulch under it because the rest got kicked to the edges is not safe.
I check our play area surface depth with a simple mark on a broom handle. I marked 9 inches from the bottom with tape, and I push it into the surface at the swing’s lowest point weekly. If the tape shows above the surface, I rake material back. It takes two minutes and catches problems before they become injuries.
Age-Zoned Design: Toddler to Tween
Children of different ages play differently, and equipment that is perfect for a 4-year-old is boring for an 8-year-old and dangerous for a 2-year-old. The best play areas separate activities by age, even within a single yard.
Zone One: Toddlers (Ages 2 to 4)
Toddlers need low structures (maximum deck height of 3 feet), short slides (under 4 feet), and ground-level activities. A sandbox, a small climbing structure with wide steps, and a low balance beam are appropriate. Avoid anything with a fall height over 3 feet, and avoid swings with rigid seats (bucket swings are the right choice for this age).
The toddler zone should have its own surfacing, separated from older kids’ equipment by at least 4 feet. The separation is not just about safety. Toddlers get knocked over by older kids running through, and the age separation reduces conflicts.
Dimension checklist for toddler zone:
- Maximum structure height: 3 feet
- Minimum surfacing depth: 6 inches of EWF or equivalent
- Slide length: maximum 4 feet
- Swing type: bucket seats only, with 3-foot minimum clearance front and back
- No entrapment gaps (any opening between 3.5 and 9 inches is a strangulation hazard)
Zone Two: School Age (Ages 5 to 8)
This is the sweet spot for most backyard play sets. Kids in this range can handle deck heights of 5 to 6 feet, standard belt swings, monkey bars, and climbing walls. The equipment needs to challenge them without being so difficult that they fall repeatedly.
For this zone, the swing clearance increases. Belt swings need a minimum of 6 feet of clearance in front and behind, measured from the outer edge of the swing arc. The use zone (the area where a child could land if they fall) extends 6 feet from any structure edge.
Age-appropriate features:
- Deck heights: 4 to 6 feet
- Slide length: 6 to 10 feet
- Climbing elements: rock walls with large holds, cargo nets, monkey bars
- Swings: belt swings, trapeze bar
- Minimum surfacing depth: 9 inches EWF or 6 inches rubber mulch
Zone Three: Tweens (Ages 9 to 12)
Older kids outgrow traditional play sets but still benefit from outdoor activity structures. This is where the design shifts from “playground” to “challenge course.” A ninja warrior-style obstacle course, a climbing rope to a high platform, a zip line, or a basketball hoop serve this age group.
The safety principles do not change, but the dimensions scale up. A 10-foot platform needs a CFH-rated surface of at least 10 feet. A zip line needs a clear run of at least 30 feet with adequate clearance on both ends (the landing area needs a soft surface and a clear 6-foot zone beyond the stop point).
For tweens, involve them in the design. Kids this age will not use a structure they had no say in, and their input often produces better ideas than the adult plan. My son’s request for “a wall I can climb on both sides” turned into a double-sided climbing wall that gets used every day, while the fancy tube slide I picked sits mostly empty.
Shade and Sun Exposure Planning
Sun exposure is a safety issue, not just a comfort one. Children burn faster than adults, and UV exposure during childhood significantly increases skin cancer risk later in life. A play area in full sun gets less use and causes more harm.
Sun Path Analysis
Before placing any structure, spend a day watching how the sun moves across the yard. In most of North America, the sun tracks from east to south to west, with the highest intensity between 10 AM and 4 PM. A play area on the south side of the house will be in full sun all day. An area on the north side gets morning and evening sun but shade in the middle of the day.
The ideal play area position gets morning sun (which dries dew and warms the surface) and afternoon shade (which keeps it usable during peak heat hours). If your yard does not offer this naturally, you need to build shade.
Built Shade Options

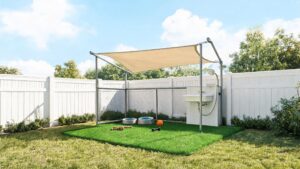

A shade sail over the play area is the most practical solution for most yards. Position it to block the afternoon sun (southwest exposure in most of the country). A 12-by-16-foot sail covers a typical swing and slide area and costs 100 to 300 dollars for the fabric plus 100 to 200 for posts and hardware. The fabric needs to be removed in winter in areas that get snow, because snow load will tear the anchors out.
A pergola over a portion of the play area gives permanent shade and can support climbing plants for additional coverage. The downside is that a pergola large enough to shade a play set is a significant structure, requiring posts set in concrete and a building permit in some jurisdictions.
Natural shade from a deciduous tree is the best solution if you have one or can plant one. The tree shades in summer when leaves are out and lets light through in winter when bare. Plant species appropriate to your climate zone, and position the tree so its mature canopy will cover the play area. A red maple planted 15 feet from the play structure will provide shade within 5 to 7 years and full coverage in 10.
Surface Temperature Management
Dark surfaces absorb heat. Black rubber mulch, dark composite decking, and asphalt all get hot enough to burn bare feet. If your play area uses any dark material, test the surface temperature on a hot afternoon before letting kids play barefoot. A surface that is 130 degrees or higher will cause burns on contact.
Light-colored surfaces stay cooler. Tan rubber mulch, light gray tiles, and natural wood mulch all run 10 to 20 degrees cooler than their dark counterparts. This is not a minor detail. I have seen kids refuse to play on a rubber-mulched area because it was too hot to walk on, defeating the entire purpose of the surface.
Equipment Anchoring and Setbacks
Even the best equipment fails if it is not anchored properly. A swing set that tips when a child swings high is a serious hazard, and the tipping usually happens because the legs were not secured.
Anchoring Methods
The three accepted methods are concrete anchors, ground augers, and buried legs.
Concrete anchors are the most secure. Dig a hole 18 inches deep and 12 inches wide at each leg location, set the leg in the hole, and pour concrete around it. The leg should extend at least 12 inches into the concrete. This method works for all soil types and all equipment sizes. The downside is that the equipment is permanent. You cannot move it without breaking concrete.
Ground augers (corkscrew-style stakes driven into the ground) work for lighter equipment on firm soil. Each leg attaches to an auger via a bracket. This method allows for repositioning but is not as secure as concrete. In sandy or loose soil, augers pull out under heavy swinging.
Buried legs (digging a hole and packing the dirt back around the leg) is the least secure method and should only be used for very light equipment on dense clay soil. I do not recommend it for anything with a swing, because the lateral force of swinging loosens the soil over time.
Setback Requirements
Setbacks are the distances between equipment and other objects. The minimum setbacks I follow:
- Between two structures: 6 feet minimum, 9 feet if both have moving parts (swings next to a merry-go-round)
- From a fence: 6 feet
- From the house: 8 feet
- From a hard surface (driveway, patio): 6 feet, with a barrier if the play area is elevated
- From overhead wires: never under any wire, ever
- From a tree trunk: 4 feet (roots make anchoring difficult closer than this)
Hardware Inspection
Every bolt, every carabiner, every chain link needs inspection. I do a full hardware check at the start of each season and a quick visual check monthly. The common failures are:
- Carabiners that have opened (always use locking carabiners for swing chains)
- Bolts that have backed out (apply thread-lock to every bolt during assembly)
- Chain links that have stretched or rusted (replace chains every 3 to 5 years)
- Swing hangers that have worn (the bushings in swing hangers wear out and need replacement)
- Wood that has cracked at a stress point (check the beam where swings attach)
Keep a small toolkit near the play area with the right wrench sizes, spare bolts, and chain lubricant. The five minutes you spend tightening a loose bolt prevents the injury that happens when it fails completely.
Maintenance and Inspection Routines
A play area is not a build-it-and-forget-it project. The structures and surfacing degrade, and the degradation is not always visible to a casual glance. A maintenance routine catches problems early.
Weekly Checks
During the active play season, do a weekly walk-through. Look for:
- Loose hardware (grab each swing chain and pull, check for play)
- Displaced surfacing material (rake back into the use zones)
- Foreign objects in the surfacing (glass, animal waste, sticks)
- Wasp nests under platforms and in enclosed tube slides
- Split or splintering wood
Monthly Checks
Monthly, do a more thorough inspection:
- Test every connection by hand. Tighten anything that moves.
- Check the depth of the surfacing at all fall zones with a depth gauge.
- Inspect ropes and cables for fraying.
- Look for rust on metal components, especially at joints.
- Check the anchoring by pushing the structure laterally. Any movement means the anchor is failing.
Seasonal Maintenance
At the start of each season:
- Re-stain or seal wood structures. Unsealed wood cracks and splinters within 2 to 3 years.
- Top up loose-fill surfacing. Add material to bring the depth back to spec.
- Inspect all plastic components for UV degradation (cracking, fading, brittleness).
- Replace any chain or hardware that shows wear.
At the end of the season:
- Remove shade sails and store them indoors.
- Cover or store movable equipment (small slides, ride-on toys).
- Drain sandboxes and cover them to prevent animal use over winter.
- Check that all anchors are solid before the ground freezes.
Designing for Growth
The final consideration is designing a play area that grows with your children. The toddler zone becomes a garden bed when the kids outgrow it. The school-age swing set can be converted to a hammock stand. The tween obstacle course can become adult fitness equipment.
Build with this evolution in mind. Use modular structures where possible, so you can remove one section and replace it without rebuilding the whole area. Keep the surfacing footprint larger than the current equipment needs, so you have room to add or change structures without re-surfacing.
The play area I built for my kids started as a toddler zone with a sandbox and low climber. Three years later, the sandbox is a raised bed, the climber has been replaced with a 6-foot deck and slide, and the surfacing area accommodates both. The design forethought saved me from rebuilding the surface and re-anchoring everything when the equipment changed. That is the payoff of planning: not just a safer play area today, but one that adapts to the kids as they grow.
