A garden arch or arbor is one of the best structures in a yard for solar lighting. It is tall, it is visible from every angle, and it usually sits in open sun (which is why your climbing roses or clematis do well on it). The shape gives you options that a flat fence or a straight wall never will. You can wrap string lights around the uprights, mount spotlights at the base to uplight climbing plants, and perch a panel on top where nothing shades it. Done well, a lit arch becomes the focal point of an evening garden. Done badly, you have a tangle of wire and a panel that falls off in the first wind.
This guide keeps it practical. Four sections, the decisions you actually need to make, and the mounting techniques that hold up.
Choosing the Right Lights and Arch Combination
The arch determines what lights work. The lights determine how you mount them. Start by looking honestly at what you are working with.
Metal arches are the most common and the easiest to light. They are typically tubular steel, either powder-coated black or painted green, with a curved or flat top. The tubes give you something to wrap string lights around and something to zip-tie or clamp fixtures to. The metal conducts heat, so avoid mounting battery-packed fixtures directly against sun-baked tubes, but for most lighting this is not a problem. Metal arches are also strong enough to hold a small solar panel on top without bracing.
Wooden arches are heavier and more decorative. Cedar and pressure-treated pine are the usual materials. Wood does not conduct, so heat is less of an issue, but wood weathers, splits, and rots over time, especially at joints where water sits. Any mounting hardware you put into wood needs to be stainless or galvanized, and you need to re-tighten annually as the wood moves with moisture. Wood gives you the option of screwing fixtures directly into the frame, which is more secure than clamping but leaves holes if you remove the lights later.
Vinyl arches exist but are the worst choice for lighting. They are flexible, which means lights bounce and panels vibrate loose. Screws pull out of vinyl easily. If you have a vinyl arch, use clamps and wrap techniques rather than screws, and keep panel weight minimal.
Light types that work on an arch. Solar string lights (also called fairy lights or fairy strings) are the classic choice for wrapping. They are a single thin wire with many small LEDs, powered by a small panel and battery box. Solar rope lights work for outlining the arch curve. Solar spotlights mounted at the base uplight the structure and any plants on it. Solar post-cap-style lights sit on top of the uprights for a finished look. For a fully lit arch, you might combine two of these types, like string lights on the uprights plus a spotlight at the base.
Weight and wind considerations. An arch is a wind-catching structure. Anything you add to it increases the wind load. A small solar panel on top acts like a sail. Keep panels under 5 watts for a freestanding arch, or brace the arch if you want a larger panel. String lights add negligible wind load. A spotlight clamped to an upright adds a little. Total it up mentally before you install, because an arch that was stable unloaded can sway alarmingly once you add a panel and a few fixtures.
The sun question. An arch in full sun is ideal because the panel charges well and you can mount it on top. An arch in partial shade (common when vines cover it) is a problem for integrated-panel lights because the foliage shades the panel. If your arch is leafy, use lights with a remote panel that you mount above the foliage on the arch top, with the light string or fixture down in the shade where you want the glow.
Mounting String Lights and Wrap Lights on an Arch
String lights are the most popular arch lighting and the easiest to install badly. Here is how to do it so they look good and stay put.
The wrapping technique. Do not just drape the string over the arch and hope. Wind the string in a spiral around each upright, spacing the turns about 4 to 6 inches apart. This distributes the light evenly and uses the friction of the wrap to hold the string in place. Start at the battery box (usually at the base) and work upward. When you reach the curve at the top, follow the curve, keeping the same spacing. Come down the other side the same way. A 33-foot string of fairy lights usually covers one upright, the top span, and partway down the other side. For a full arch, use two strings, one starting at each base and meeting at the top.
Securing the string. The spiral wrap holds by friction on metal and reasonably well on wood. But wind and temperature changes loosen it over time. Add a zip tie every 12 to 18 inches, cinched tight around the tube or frame with the string captured underneath. Use black or green UV-resistant zip ties to match the arch. Trim the tails flush so they do not catch on clothing or vines. For a cleaner look on a metal arch, use small reusable rubber clips designed for cable management, which grip the tube and hold the string without the visual clutter of zip ties.
The battery box placement. Solar string lights have a battery box with a small integrated panel. This box needs sun. The worst mistake is tucking it at the base of the arch in shade, where it never charges. Mount the box on the south-facing side of an upright, about halfway up, where it gets direct sun for most of the day. Use the stake that comes with the string if the box has one, driven into the ground at the arch base in a sunny spot, with the string running up the arch. Or zip-tie the box directly to an upright that gets sun. Angle the box’s panel face toward the south (in the northern hemisphere) and tilt it up about 30 to 45 degrees from vertical.
Rope lights on the arch curve. Rope lights are thicker and do not wrap spirally. Use them to outline the top curve of the arch. Secure with zip ties or with clip brackets screwed into a wooden arch. Rope lights are heavier than fairy strings, so support them every 8 to 10 inches or they sag between attachment points and look sloppy. The panel and battery box for a rope light is usually larger, so plan a solid mounting spot for it on an upright or on top.
Dealing with the wire between string and box. The wire from the battery box to the start of the string is often 3 to 6 feet long. Run this neatly up the inside of the upright (the side facing the arch interior) secured with zip ties, so it does not flap in the wind or get snagged by vines. Keep it on the inside so it is less visible from the main viewing angle.
Connecting multiple strings. If you use two strings to cover both sides of the arch, you have two battery boxes to mount. Put one on each upright, both in sun. Do not try to daisy-chain solar string lights (connecting the output of one to the input of another) because they are not designed for it and the voltage drops. Each string runs independently off its own panel and battery.
Battery access and replacement. Solar string light battery boxes typically hold one or two AA NiMH cells. These last 18 to 24 months before losing capacity. When the string starts dimming early in the evening or skipping nights, the batteries are due. Mount the battery box where you can reach it without a ladder, because you will be opening it regularly. A box mounted at chest height on an upright is far better than one perched at the top of the arch. If your box must go high for sun, accept that you will need a step stool for battery swaps.
Choosing string light quality. Cheap fairy strings fail fast outdoors. The thin wire corrodes at the connection to the battery box within a season of rain. Look for strings with a weatherproofed battery box (rubber gasket on the door, sealed cable entry) and a wire gauge that feels substantial rather than hair-thin. Copper wire with a clear PVC jacket holds up better than silver-colored wire. Spend a little more per string and you avoid redoing the wrap every year when a cheap string dies mid-summer.
Upward Spotlights for Climbing Plants
An uplit arch with mature climbing plants is stunning. The light catches the leaves and flowers from below, throwing shadows upward, and silhouettes the arch structure against the sky. This effect needs spotlights, not string lights.
Choosing the spotlight. Use a solar spotlight with a remote panel on a cable (usually 6 to 10 feet). The light head goes at the base of the arch in the shade of the plants. The panel goes up in the sun. Integrated spotlights (panel and light in one unit) do not work well here because the plant foliage shades the panel. Look for a spotlight with an adjustable head, a ground spike, and a separate panel.
Placement. One spotlight at each base of the arch, aimed upward and slightly inward, lights both uprights and the climbing plants. For a wider arch, add a third light in the center of one side. The lights should sit 6 to 12 inches out from the arch base, angled so the beam climbs the structure rather than blasting straight out into the yard. Stake them into the ground firmly. If the ground at the arch base is soft or mulched, drive the stake deeper or set it in a small concrete footing so it does not lean over the season.
Aiming. Tilt the light heads about 15 to 20 degrees off vertical, toward the arch. This grazes the upright and the plant stems rather than hitting them flat. Grazing creates texture and shadow. Flat hits create a washed-out hot spot. Experiment at night and adjust until the beam climbs the full height of the arch and fades naturally at the top.
Panel mounting for spotlights. The remote panel for each spotlight needs a sunny home. The arch top is ideal. Clamp or zip-tie the panel to the top horizontal member of the arch, facing south and tilted up. Run the cable down the inside of the nearest upright, secured with zip ties, to the light at the base. If the arch top does not get sun (because of a nearby tree), mount the panel on a separate stake in the nearest sunny spot and run the longer cable to the light. Keep cable runs under the panel’s cable length (usually 10 feet) to avoid voltage drop.

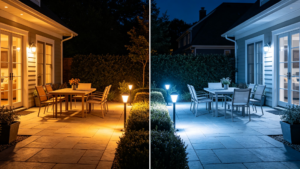

Spotlight brightness and color. Warm white (2700K to 3000K) spotlights look natural on plants and complement warm string lights. Cool white (5000K to 6500K) looks harsh on green foliage but is fine if you want a moonlit effect. Match the color temperature of your spotlights to your string lights for a coherent look. Mixed warm and cool on the same arch looks accidental.
Protecting spotlights from vine overgrowth. Climbing plants grow fast and will engulf a ground-level spotlight within a season. Check monthly during growing season and trim back any stems that block the light head. Better yet, mount the spotlight on a short bracket extending out from the arch base rather than on a ground stake, so the plant grows under it rather than over it.
Panel Placement on Arch Tops for Maximum Sun
The top of an arch is often the sunniest spot in a garden, which makes it the natural place for a solar panel. Here is how to mount one there securely.
Why the arch top is good. It is above most fence lines and shrubbery. It is above the dew line, so the panel dries fast in the morning. It is above the snow line in light snow areas. And it is already a structure, so you do not need to build a pole.
Why the arch top is tricky. It is exposed to full wind. It is a curved or narrow surface that does not give you a flat mounting area. And if vines grow over it, the panel gets shaded, which defeats the purpose.
Mounting on a flat-topped arch. If your arch has a flat horizontal member on top, clamp or screw a small panel mount to it. A simple L-bracket made of aluminum, bolted through the top member, gives you a vertical surface to attach the panel’s mounting bracket to. Angle the panel at your latitude for year-round charging, facing south. Use stainless hardware and a rubber gasket between the bracket and the arch to prevent corrosion on metal arches and water intrusion on wooden ones.
Mounting on a curved-top arch. A curved top gives you no flat surface. Use a saddle clamp that wraps the tube, with a vertical post extending up, and mount the panel on the post. Alternatively, build a small wooden platform that sits on top of the curve, secured with straps or clamps that wrap the tube. The platform gives you a flat mounting surface. Keep the platform small (just bigger than the panel) to minimize wind load.
Panel size limits. A freestanding arch flexes in wind. A panel is a sail. Keep the panel under 10 watts (roughly 12 by 12 inches) for a typical tubular steel arch. For a heavier wooden arch, you can go larger, but test the sway before committing. If the arch sways more than a few inches in a breeze with the panel on it, the panel is too big or the arch needs bracing. Brace the arch by adding diagonal supports from the uprights to ground stakes, or by anchoring the arch feet more solidly.
Cable routing from the panel. Run the panel cable down the inside of the nearest upright (the side not visible from the main viewing angle). Secure it every 12 inches with zip ties or cable clips. Leave a small drip loop where the cable comes off the panel, so water runs off the loop instead of into the connector. Route the cable to wherever the battery box or light fixture is. If you are running string lights, the panel cable connects to the battery box. If you are running spotlights, the panel connects to each light.
Keeping vines off the panel. This is the ongoing battle on a planted arch. Clematis, roses, and jasmine all want to climb to the top and will drape over your panel within a season. Train the vines up the outside of the uprights and along the sides of the top, not over the top itself. Prune aggressively in the panel area. If the vine is determined, build a small cage of wire mesh around the panel that lets light in but keeps stems off the glass. A shaded panel produces almost nothing, so this maintenance is not optional if you want the lights to work.
Winter considerations. Snow on the panel stops all charging. If you live in snow country, either tilt the panel steeper (to shed snow) or accept that the arch lights go dark during snowy periods. Most arch lights are decorative rather than essential, so a winter dark period is acceptable. Remove the panel and store it if the arch is in a spot where ice loading could damage it.
A lit garden arch is one of the highest-impact solar lighting projects you can do, because the arch is already a visual feature and lighting amplifies it. The keys are matching the light type to the arch material, wrapping rather than draping string lights, using remote-panel spotlights for planted arches, and mounting the panel where sun and wind are both managed. Get those four things right and your arch becomes a nighttime centerpiece that runs entirely on the sun it catches all day.
